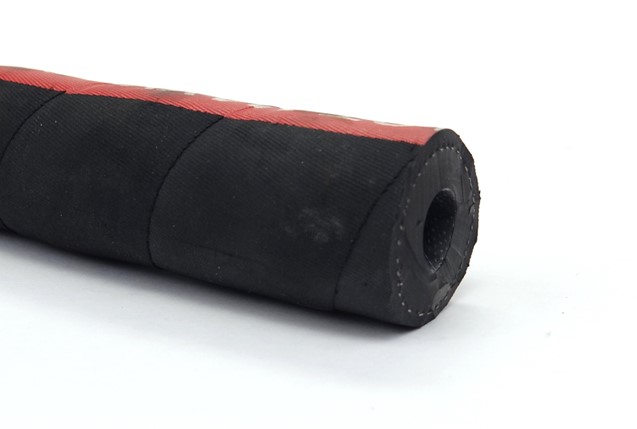

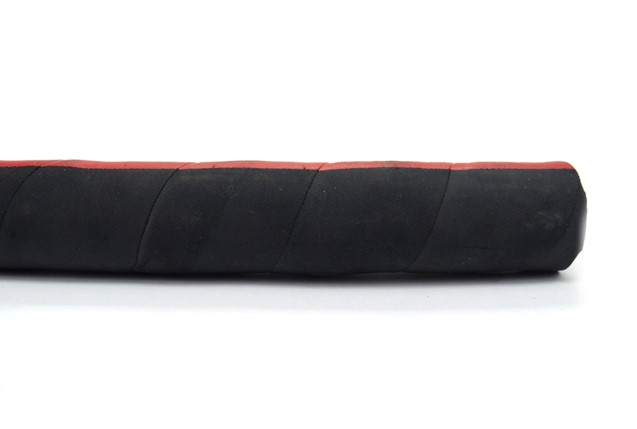

Designed for conveying sand, steel shot and other abrasive materials. Built with a static conductive 1/4" thick abrasion resistant tube designed for transferring abrasives at high velocity.
Tube -1/4" black static conductive abrasion resistant natural rubber. Reinforcement - Two layers of synthetic textile cords. Cover - Black natural / EPDM blended rubber.
-35°C to +82°C (-31°F to +180°F)
| Part Number | I.D. Inches | O.D. Inches | MAX W.P. (PSI) | Approx. Wt. Per. Ft. Lbs. |
| HSB050106 | 1/2 | 1.063 | 150 | 0.47 |
| HSB050112 | 1/2 | 1.125 | 150 | 0.49 |
| HSB075 | 3/4 | 1.500 | 150 | 0.72 |
| HSB100 | 1 | 1.875 | 150 | 1.06 |
| HSB125187 | 1-1/4 | 1.875 | 150 | 1.11 |
| HSB125215 | 1-1/4 | 2.156 | 150 | 1.25 |
| HSB150 | 1-1/2 | 2.375 | 150 | 1.43 |
| HSB200 | 2 | 2.875 | 150 | 1.69 |
| HSB250 | 2 | 3.425 | 150 | 2.37 |
| HSB300 | 3 | 4.000 | 150 | 3.09 |
